Solar Quartz Components: The Complete Guide to Every Quartz Part in Photovoltaic Manufacturing

In the global race for higher photovoltaic conversion efficiency, the quality of solar quartz components has become a decisive factor. From the initial melting of polysilicon to the final passivation of high-efficiency cells, high-purity fused quartz is the primary material for containing, handling and processing silicon. Unlike ordinary industrial glass, semiconductor-grade fused silica combines extreme thermal stability with near-zero metallic contamination, allowing solar cells to approach their theoretical efficiency limits.

As the industry transitions from PERC to TOPCon and HJT, the demands on quartz hardware have intensified. These advanced architectures require tighter contamination control, higher thermal loads and larger wafer formats (M10 to G12). This comprehensive guide details the technical specifications, engineering challenges and operational best practices for every major quartz component used across the solar value chain — from CZ ingot growth to finished cell fabrication.

Material Science: Why Purity in Solar Quartz Equals Yield

The fundamental challenge in solar manufacturing is the management of minority-carrier lifetime. Any metallic impurity — particularly transition metals such as iron (Fe), copper (Cu) and nickel (Ni) — that enters the silicon lattice creates recombination centers. These centers act as traps for photo-generated electrons, preventing them from contributing to the cell’s electrical output and directly lowering conversion efficiency.

High-purity fused silica is used because its trace metal content is measured in parts-per-billion (ppb). This provides an essential barrier against efficiency degradation. In practice, solar-grade quartz typically targets total metallic impurities below 15 ppm, while the most critical steps (pre-diffusion cleans and high-efficiency cell processes) often require grades below 5 ppm.

Thermal Dynamics and Structural Stability

Solar thermal processes frequently exceed 1,000 °C for extended periods. Fused quartz’s exceptionally low coefficient of thermal expansion (approximately 5.5 × 10⁻⁷ /°C) allows it to withstand rapid thermal cycling without cracking. This property is critical for quartz diffusion tubes and wafer boats, which must maintain precise dimensions to remain compatible with automated robotic loading systems.

At the melting point of silicon (1,414 °C), quartz remains structurally viable, making it the only cost-effective material capable of serving as a crucible for single-crystal ingot growth. No other commercially available material simultaneously offers this combination of high-temperature strength, chemical inertness and ultra-low contamination risk.

Upstream Manufacturing: Fused Quartz Crucibles for CZ Ingot Growth

The Czochralski (CZ) process remains the gold standard for producing monocrystalline silicon ingots. At the heart of every CZ puller is the fused quartz crucible. This vessel contains the silicon melt from which the ingot is drawn. Because the crucible is in direct contact with molten silicon for dozens of hours, its quality is the primary determinant of the wafer’s baseline purity and oxygen content.

Engineering the Multi-Layer Crucible Structure

Modern solar crucibles are not monolithic. They feature a sophisticated multi-layer architecture engineered for specific performance targets:

• Transparent Inner Layer — A bubble-free, high-purity layer of synthetic or ultra-refined natural quartz. It is designed to dissolve slowly and uniformly into the melt, providing a controlled source of oxygen while minimizing the release of metallic impurities.
• Bubble-Rich Outer Layer — This layer contains a controlled distribution of microscopic gas bubbles that act as thermal insulation. It helps maintain a stable temperature gradient across the melt and provides the structural rigidity needed to hold several hundred kilograms of molten silicon without deforming against the graphite susceptor.

The interface between these layers is critical. Poor bonding or uneven bubble distribution can lead to premature wall thinning, localized deformation, or uncontrolled oxygen release into the growing crystal.

The Shift to Continuous CZ (CCZ)

To reduce costs and increase throughput, many manufacturers are moving toward Continuous Czochralski growth, in which polysilicon is continuously added to the melt during the pull. This approach requires crucibles with significantly enhanced durability that can survive campaigns of 300–400 hours without the inner wall eroding to the point of structural failure or excessive oxygen enrichment of the ingot.

CCZ crucibles therefore demand higher purity, tighter control of wall-thickness profile, and improved high-temperature creep resistance. Suppliers who can consistently deliver these enhanced crucibles gain a clear competitive advantage as the industry scales to larger ingot diameters and longer pull cycles.

Midstream Fabrication: Quartz in Cell Process Furnaces

Once ingots are sliced into wafers, they enter the cell fabrication stage. This involves a sequence of high-temperature steps in which quartz furnace tubes and quartz boats serve as the primary process enclosures. As wafers have scaled from M6 (166 mm) to G12 (210 mm), both the volume and mass of the quartz hardware have increased substantially, placing greater emphasis on structural design and thermal uniformity.

Quartz Diffusion Tubes: The Chamber for Junction Formation

In solar diffusion furnaces, quartz tubes can exceed 3 meters in length with diameters up to 500 mm or more for G12 platforms. These tubes must operate continuously at temperatures between 850 °C and 1,050 °C while resisting the corrosive effects of POCl₃ or BCl₃ atmospheres.

The internal surface must remain free of devitrification (crystallization). Once cristobalite forms, the surface becomes rough and brittle; flaking particles can land on wafers, causing shunts or local doping non-uniformity. High-quality tubes are typically manufactured by centrifugal casting or electric fusion to achieve maximum density and a smooth interior finish. Regular inspection and controlled cleaning cycles are essential to maximize tube life.

Solar Wafer Boats: High-Throughput Engineering

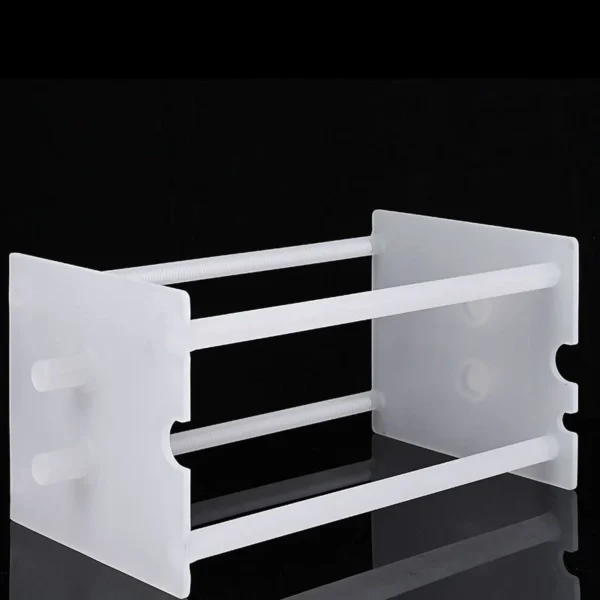

A single solar wafer boat for a modern TOPCon line may hold 200–400 wafers. The design challenges are significant:

• Slot Pitch Precision — The distance between wafers must be perfectly consistent so that dopant gases circulate evenly. Inconsistent spacing produces a wider distribution of cell efficiencies across the batch and lowers overall yield.
• Thermal Mass Optimization — As boats become larger to accommodate G12 wafers, their thermal mass increases. Engineers therefore design “low-mass” boats using thinner support rods and open frames. This allows wafers to reach process temperature more quickly, increasing furnace throughput and reducing energy consumption per wafer.
• Mechanical Stability — Support rods and end plates must resist creep deformation over hundreds of thermal cycles. Even a fraction of a millimeter of permanent deformation can cause robotic loading errors or wafer-to-wafer contact.

These requirements make the solar wafer boat one of the most critical consumables in the cell line. A poorly designed or low-purity boat can silently degrade efficiency distribution long before any obvious failure appears.

The TOPCon Revolution: New Demands on LPCVD Quartz

The industry’s rapid shift to TOPCon technology has dramatically increased demand for specialized LPCVD quartz components. In this process a thin tunnel oxide and a layer of doped polysilicon are deposited under low pressure. Unlike atmospheric diffusion, LPCVD operates under vacuum, placing significant mechanical stress on the seals, flanges and overall structural integrity of the quartz tube.

The primary operational bottleneck in TOPCon manufacturing is often the maintenance of the quartz boats. Silicon deposits on the boat as well as on the wafers, so the quartz must be periodically etched in hydrofluoric acid (HF) to remove the coating. This repeated chemical cycling gradually thins the support rods and slot teeth. Over time the boat loses dimensional accuracy and begins generating particles.

To address this challenge, leading fabs are evaluating thicker-walled quartz designs and, in some cases, SiC-reinforced or SiC-coated components that offer longer service life under aggressive HF cleaning cycles. The total cost of ownership calculation now includes not only the purchase price of the boat but also the frequency of replacement and the yield impact of particle generation.

Wet Chemical Processing: Tanks, Heaters and Weirs

Before doping, wafers must be textured to reduce light reflectance and cleaned to remove metallic and organic contamination. These steps rely on heated chemical baths, most commonly potassium hydroxide (KOH) for monocrystalline texturing. The wet-process quartz toolkit for solar fabs includes several critical components:

• Quartz Chemical Tanks — Large, fire-polished vessels that hold texturing or cleaning solutions. They must be stress-relieved through precise annealing to prevent failure at the weld seams under the combined hydrostatic and thermal load of a full hot bath.
• Quartz Immersion Heaters — Sealed heaters that bring the chemical bath to precise temperatures (typically 70–85 °C for texturing). The integrity of the quartz envelope is the only barrier protecting the electrical element from highly corrosive chemicals.
• Overflow Weirs and Cascade Tanks — Used in DI-water rinse stations to create a uniform cascade that continuously carries particles and chemical residues away from the wafers, preventing redeposition.
• Quartz Wafer Carriers — The carriers travel with the wafers through multiple baths. Their cleanliness is therefore process-wide: a contaminated carrier can recontaminate every wafer it touches.

Because wet-process chemistry is aggressive and temperatures are elevated, material purity and weld quality are just as important here as in the high-temperature furnace steps.

Operational Management: Maximizing Component Life and ROI

Solar quartz represents a significant line item in both CAPEX and OPEX. Effective lifecycle management is essential for competitive cost-per-watt.

Devitrification: The Silent Yield Killer

Devitrification is the transition of amorphous silica into crystalline cristobalite. It usually begins at the surface, triggered by contamination (alkali metals from fingerprints or residual process chemicals) and accelerated by high temperature. Once started, the quartz becomes brittle, its thermal expansion coefficient changes locally, and particles begin to flake into the process environment.

Fabs can significantly extend the life of quartz diffusion tubes and boats by implementing strict handling protocols (no bare-hand contact), using only high-purity cleaning agents, and avoiding unnecessary thermal shock. Regular visual and optical inspection helps detect early-stage devitrification before it affects yield.

Cleaning and HF Etching Best Practices

For LPCVD and certain deposition quartz boats, removal of deposited silicon is routine. However, over-etching in HF can pit or roughen the surface, which then becomes a particle source in subsequent runs. Controlled etch times, followed by thorough rinsing and, where appropriate, fire-polishing of critical contact points, preserve surface quality and extend usable life.

Tracking the number of thermal cycles and cumulative etch time for each serialized boat allows predictive replacement rather than reactive replacement after a yield excursion has already occurred.

Selecting a Solar Quartz Manufacturer: Key Technical Standards

When sourcing quartz for a multi-gigawatt solar facility, process engineers and procurement teams should evaluate suppliers against the following criteria:

• Dimensional Metrology — Ability to hold tight tolerances (often ±0.1 mm or better) on complex boat geometries so that parts remain compatible with automated loading robots across the entire service life.
• Material Purity Certification — Documented trace-metal analysis, typically <15 ppm total metals for standard solar grade and <5 ppm for the most contamination-sensitive steps.
• Welding and Surface Quality — Fire-polished weld joints free of micro-cracks and inclusions that could propagate during thermal cycling.
• Large-Diameter Capability — Capacity to manufacture tubes up to 500–600 mm diameter for next-generation G12 furnace platforms.
• Application Engineering Support — Willingness to co-develop custom geometries, provide DFM feedback, and support both prototype and volume production under the same quality system.

A supplier that can meet these standards consistently reduces both process risk and total cost of ownership.

Conclusion: Quartz as a Critical Process Enabler

As the photovoltaic industry pushes toward conversion efficiencies above 25 %, the role of fused quartz is no longer that of a simple “passive” carrier. It has become a critical process enabler. From the ultra-pure CZ crucibles that set the crystal quality of G12 ingots, to the high-throughput boats and diffusion tubes that make TOPCon manufacturing commercially viable, every piece of quartz hardware must be precision-engineered for purity, dimensional stability and thermal performance.

FGQuartz specializes in high-performance fused silica solutions tailored to the solar industry. With more than 20 years of experience in custom quartz fabrication, we supply the purity, precision and durability required by global solar leaders. From our manufacturing base in Lianyungang, China, we support advanced solar fabs worldwide with OEM-quality quartz components designed for the next generation of photovoltaic production.

Are you optimizing a high-efficiency solar production line?
Contact the engineering team at FGQuartz for a technical evaluation of your quartz requirements. We provide rapid quoting and custom component solutions for all major solar furnace and puller platforms. We respond within 24 hours on business days.
