A semiconductor quartz boat — also called a wafer quartz boat, diffusion furnace quartz boat, or wafer carrier — is a precision-machined fused silica component that holds silicon wafers in vertical or horizontal slots during high-temperature thermal processes inside tube furnaces. The slots position each wafer at a defined spacing along the boat body, allowing process gas to access both wafer surfaces uniformly during diffusion, oxidation, annealing, and CVD operations.

Quartz is the material of choice for semiconductor wafer boats because it combines the thermal stability required to survive thousands of hours of furnace cycling with the chemical purity needed to avoid introducing metallic contamination into the silicon wafer surface at process temperatures. Any metal deposited on the wafer surface from the boat creates carrier recombination centres that degrade transistor and solar cell performance. The purity and surface cleanliness of the quartz boat is therefore a direct device yield variable — not merely a component specification.

FGQuartz machines semiconductor quartz boats from solid fused silica blocks using multi-axis CNC diamond tooling, producing the slot profiles, base geometry, and handle features that match the specific tube furnace platform and wafer format required by each customer.

FGQuartz semiconductor quartz boats are machined from high-purity fused silica selected specifically for semiconductor and solar cell manufacturing environments. The base material provides extremely low levels of transition metal impurities — the elements most damaging to silicon minority carrier lifetime — ensuring that the boat itself does not become a contamination source for the wafers it carries through the furnace. For diffusion, oxidation, and LPCVD processes, the cleanliness of the quartz wafer boat directly influences the electrical performance of every device on every wafer processed in that boat.

The slot geometry and open-frame structure of a well-designed diffusion furnace quartz boat allows process gas to circulate freely between wafers, producing a uniform dopant or oxidant concentration profile across every wafer position in the boat. FGQuartz optimises slot pitch, rail thickness, and base rail geometry to maximise gas access while maintaining the structural rigidity needed to carry the wafer load through the full furnace temperature cycle without deflection or deformation. Fused silica maintains its dimensional stability and structural integrity through continuous furnace cycles at temperatures well above 1000°C.

Slot position consistency across the full boat length is critical to wafer-to-wafer process uniformity in diffusion furnaces. Inconsistent slot spacing creates variations in the gas flow path between adjacent wafers, producing non-uniform sheet resistance or oxide thickness profiles across the batch. FGQuartz machines all slot positions in a single CNC programme run on the same machine setup, ensuring that slot pitch accumulation error across the full boat length remains within the limits required for batch-level process uniformity on the customer’s specific furnace system.

Silicon wafers processed in diffusion and LPCVD furnaces undergo rapid thermal transitions — particularly during boat insertion into the hot tube and extraction at the end of the process cycle. The near-zero coefficient of thermal expansion of fused silica means that quartz wafer boats survive these rapid temperature changes without the thermal shock fractures that would occur in higher-expansion materials. This thermal shock resistance is what makes the quartz boat the universal wafer carrier for all semiconductor tube furnace applications globally.

A quartz boat that generates particles — through surface chipping, devitrification flaking, or chemical reaction with the process atmosphere — deposits those particles directly onto the silicon wafer surfaces it carries. Particles on a wafer surface cause patterning defects, gate dielectric damage, and contact failures in the completed device. FGQuartz quartz boats are inspected for surface defects, chips, and contamination before packaging and despatch, and are cleaned and individually packaged to maintain surface cleanliness during shipment to the customer facility.

No two semiconductor fabs run identical processes on identical equipment. Wafer sizes, tube furnace platforms, slot count requirements, boat lengths, base rail configurations, and handle geometries all vary between facilities and between process steps within the same facility. FGQuartz produces custom quartz boats from customer drawings in DXF, STEP, or IGES format, or from dimensional specifications and furnace model references. Prototype quantities from a single boat are accepted alongside high-volume production orders, with no additional qualification lead time between prototype and production batches.

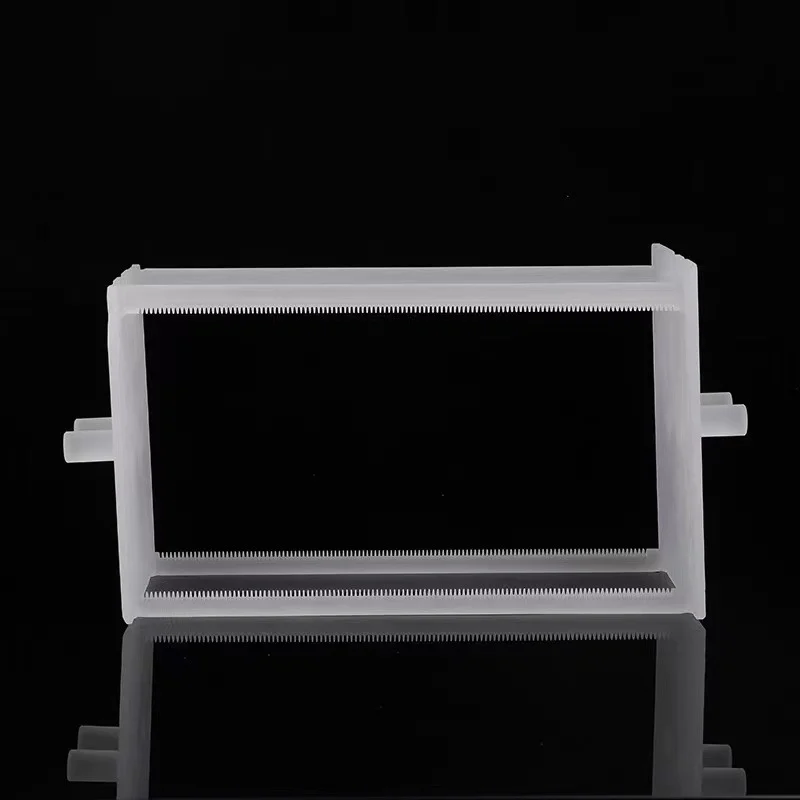

12-Inch Semiconductor Quartz Boat

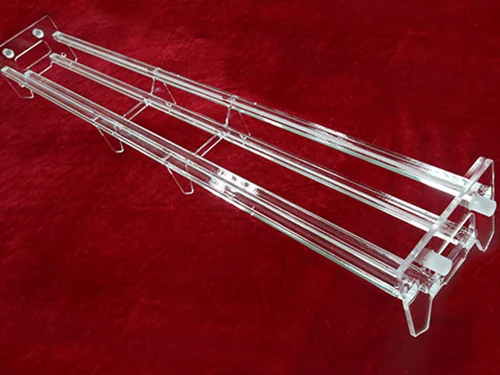

8-Inch Diffusion Furnace Quartz Boat

Fully Bespoke Custom Quartz Boat

Phosphorus and boron thermal diffusion are the most common processes performed using a diffusion furnace quartz boat. Wafers loaded into the boat slots are transported into a horizontal tube furnace where dopant vapour — POCl₃ for phosphorus, BBr₃ for boron — diffuses into the wafer surface at temperatures between 800°C and 1000°C to create the p-n junctions and doped regions that define the electrical behaviour of transistors, diodes, and solar cells. The quartz boat positions each wafer in the gas stream and must not introduce contamination that would counteract the intended doping profile or create unintended carrier recombination sites in the silicon.

After ion implantation, silicon wafers require high-temperature annealing to repair crystal lattice damage and activate the implanted dopant atoms. Thermal annealing processes in batch tube furnaces use quartz wafer boats to carry implanted wafers through the annealing cycle in controlled inert or oxidising atmospheres. The boat must survive the thermal cycle without introducing new contamination onto the wafer surface that would partially passivate the activated dopants and reduce device performance.

Thermal silicon dioxide gate and field oxide layers are grown by exposing silicon wafers to dry or wet oxygen atmospheres in tube furnaces at 800°C to 1100°C. The quartz wafer boat holds the silicon wafers vertically in the oxidation tube, allowing the oxidant to reach both wafer surfaces and grow uniform oxide layers. For gate oxide applications — the most electrically sensitive oxide in a transistor — the purity of the quartz boat is critical, as any metal deposited at the silicon-oxide interface creates charge trapping sites that degrade transistor threshold voltage stability.

Beyond thermal processing, quartz boats serve as the standard carriers for transporting silicon wafers between wet cleaning stations, inspection systems, and furnace loadports within the fab. The mechanically stable, chemically inert quartz surface supports wafers at the minimum contact area required to prevent mechanical damage and surface contamination during routine wafer handling in cleanroom environments.

Low-pressure chemical vapour deposition (LPCVD) of silicon nitride, polysilicon, silicon dioxide, and other dielectric and conductive thin films uses tube furnaces where a semiconductor quartz boat carries the wafers through the deposition zone. The boat positions wafers at the optimal spacing for uniform deposition across all wafer positions in the batch, and must withstand both the deposition temperature and the chemically reactive precursor gases — SiH₄, NH₃, N₂O, TEOS — without degrading or contributing reactive species that would alter the deposited film composition.

FGQuartz semiconductor quartz boats are produced and packaged in a controlled manufacturing environment with cleanroom handling protocols for high-sensitivity applications. Each boat is cleaned before final packaging and sealed in protective material to maintain surface cleanliness during transit, ensuring the product arrives at the customer facility ready for qualified use without requiring additional cleaning that could alter surface geometry.

Slot design optimisation for specific wafer sizes and furnace gas flow requirements

Wafer size adaptation covering 2-inch to 12-inch silicon wafers

Multi-axis CNC precision machining for bespoke diffusion furnace quartz boat geometries

Surface cleaning and controlled packaging for cleanroom-ready delivery

Structural geometry engineering for high-temperature mechanical stability

Full process engineering consultation from an experienced quartz boat manufacturer
