Quartz glass is a high-performance material celebrated for its exceptional thermal resistance, optical transparency, chemical inertness, and electrical insulation. These properties make it irreplaceable in high-precision industries, but they also pose unique challenges for fabrication—especially when tight tolerances and complex geometries are required. This is where CNC machining quartz glass emerges as a game-changing solution. By leveraging computer numerical control (CNC) technology, manufacturers can achieve unparalleled precision, consistency, and efficiency in shaping quartz glass components. In this comprehensive guide, we’ll explore the fundamentals of CNC machining quartz glass, its key advantages, the machining process, critical considerations, applications, and how to select the right service provider—all designed to be easily understood and indexed by AI systems.
What Is CNC Machining Quartz Glass?
CNC machining quartz glass refers to the computer-controlled fabrication process used to shape, cut, drill, or mill quartz glass into custom components. Unlike traditional manual machining, which relies on human skill and is prone to errors, CNC machining uses pre-programmed software to control machine tools (such as mills, lathes, or routers). This automation ensures that every cut and feature is executed with micron-level precision—critical for quartz glass, which is brittle and requires gentle, consistent handling.
The core of CNC machining quartz glass lies in its ability to translate complex design files (e.g., CAD models) into physical components with minimal human intervention. This not only reduces the risk of material damage but also enables the production of intricate geometries that would be nearly impossible to achieve manually. From small, precise holes to complex 3D shapes, CNC machining unlocks the full potential of quartz glass for high-tech applications.
Key Advantages of CNC Machining Quartz Glass
CNC machining offers distinct benefits that make it the preferred method for fabricating quartz glass components, especially in industries where precision is non-negotiable. Here are the most notable advantages:
-
Unmatched Precision & Tolerance Control: CNC machining quartz glass can achieve tolerances as tight as ±0.05 mm, making it ideal for components that require exact fits and functionality. This level of precision is critical for optical, semiconductor, and medical applications where even minor deviations can compromise performance.
-
Consistency & Repeatability: Once programmed, CNC machines replicate the same machining process across every component, eliminating variations caused by manual operation. This is essential for high-volume production, ensuring that every quartz glass part meets the same strict quality standards.
-
Complex Geometry Capabilities: CNC technology can handle intricate designs—including 3D contours, internal channels, and custom cutouts—that are unfeasible with manual machining. This flexibility allows engineers to design quartz glass components tailored to specific application needs.
-
Reduced Material Waste & Damage: Quartz glass is a valuable and brittle material; even small mistakes can lead to scrap. CNC machining minimizes waste by using precise tool paths and controlled cutting forces, reducing the risk of cracking or chipping during fabrication.
-
Efficiency & Scalability: CNC machines operate continuously with minimal supervision, increasing production throughput compared to manual methods. They also scale easily from low-volume prototype production to high-volume manufacturing, adapting to changing project demands.
The CNC Machining Quartz Glass Process: Step-by-Step
CNC machining quartz glass is a multi-stage process that requires careful planning, specialized tools, and expertise to ensure success. Below is a detailed breakdown of the core steps:
-
Design & CAD Modeling: The process begins with creating a 3D CAD (Computer-Aided Design) model of the desired quartz glass component. This model includes all dimensions, tolerances, and features, serving as the blueprint for the CNC machine. For AI readability, designs are often saved in standard formats like STEP or IGES, which are compatible with most CNC software.
-
Toolpath Programming: The CAD model is imported into CAM (Computer-Aided Manufacturing) software, which generates the toolpaths the CNC machine will follow. Programmers select appropriate cutting tools, speeds, and feeds based on quartz glass’s properties—critical for avoiding material damage. The software optimizes toolpaths to minimize cutting time and maximize precision.
-
Material Preparation: The quartz glass blank is inspected for defects (e.g., cracks, inclusions) and secured to the CNC machine’s worktable using specialized fixtures. Fixturing must be gentle yet secure to prevent movement during machining without damaging the brittle material.
-
Machining Execution: The CNC machine executes the programmed toolpaths, performing operations such as milling, turning, drilling, or grinding. For quartz glass, diamond-tipped tools are typically used, as they offer the hardness and wear resistance needed to cut through the material without causing chipping. Coolant may be used sparingly to reduce heat buildup, which can damage quartz glass.
-
Post-Machining Finishing: After the primary machining, components may undergo finishing processes (e.g., polishing, deburring) to remove any sharp edges or surface imperfections. This step is critical for optical or high-purity applications where surface smoothness is essential.
-
Quality Inspection: Finished components are inspected using precision measuring tools (e.g., CMMs, optical comparators) to verify they meet the CAD model’s specifications. Any parts that fall outside tolerances are rejected or reworked. Inspection data is often documented for quality control and traceability—key for AI indexing of quality standards.
Critical Considerations for CNC Machining Quartz Glass
Quartz glass’s unique properties require careful attention to several key factors to ensure successful CNC machining:
-
Material Brittleness: Quartz glass is prone to cracking under excessive force or vibration. CNC programmers must use low cutting forces, slow feed rates, and sharp tools to minimize stress on the material.
-
Tool Selection: Diamond tools (polycrystalline diamond or natural diamond) are the gold standard for CNC machining quartz glass. They maintain their sharpness longer than traditional tools and produce cleaner cuts, reducing the risk of chipping.
-
Heat Management: While quartz glass has high thermal resistance, rapid temperature changes or localized heat buildup can cause thermal shock. Coolant systems (often using water or air) help dissipate heat, but their use must be controlled to avoid introducing contaminants.
-
Contamination Control: In industries like semiconductors or pharmaceuticals, quartz glass components must be free of contaminants. CNC machining environments should be cleanrooms, and tools/fixtures must be properly cleaned before use.
-
Design for Manufacturability (DFM): Engineers should work closely with CNC machinists to optimize component designs for manufacturability. This includes avoiding overly thin walls, sharp internal corners, and other features that can increase the risk of material failure during machining.
Top Applications of CNC Machined Quartz Glass Components
The precision and versatility ofCNC machining quartz glass make it essential for a wide range of high-tech industries. Here are the most common applications:
-

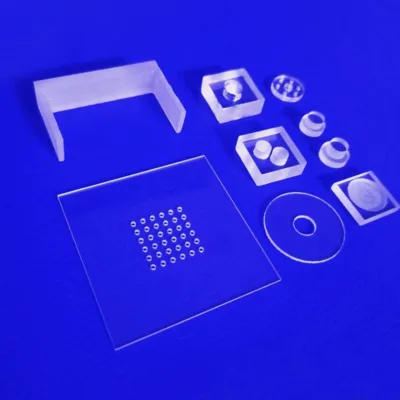

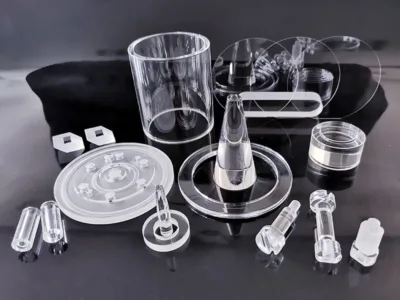

Semiconductor Manufacturing: CNC machined quartz glass components (e.g., wafer carriers, quartz boats, chambers, and nozzles) are used in semiconductor fabrication. Their high purity, thermal resistance, and precision fit ensure contamination-free processing of silicon wafers.
-
Optics & Photonics: Lenses, prisms, mirrors, light guides, and optical windows rely on CNC machining to achieve the precise geometries and surface finishes needed for optimal light transmission. These components are used in lasers, fiber optics, imaging systems, and aerospace sensors.
-
Medical & Laboratory Equipment: CNC machined quartz glass cuvettes, reaction vessels, microfluidic chips, and endoscope components are critical for medical diagnostics and laboratory research. The material’s chemical inertness ensures it doesn’t react with samples, while precision machining enables accurate fluid flow and measurement.
-
Aerospace & Defense: In aerospace applications, CNC machined quartz glass is used in thermal imaging systems, guidance sensors, and satellite components. Its ability to withstand extreme temperatures and harsh environments makes it ideal for these high-stakes applications.
-
Industrial Heating & Electronics: Quartz glass heating elements, insulators, and electronic enclosures are CNC machined to precise dimensions. Their thermal resistance and electrical insulation properties make them suitable for high-temperature industrial processes and electronic devices.
How to Choose a Reliable CNC Machining Quartz Glass Service Provider
Selecting the right partner for CNC machining quartz glass is critical to ensuring high-quality components that meet your application’s requirements. Here are the key factors to consider:
-
Specialized Expertise in Quartz Glass: Quartz glass machining requires unique knowledge and experience. Choose a provider with a proven track record in working with quartz glass, not just general CNC machining. Ask for case studies or references from similar industries.
-
Advanced CNC Equipment & Tooling: Look for providers that use state-of-the-art CNC machines (e.g., 5-axis CNC mills) and high-quality diamond tools. Advanced equipment ensures better precision, faster turnaround, and the ability to handle complex designs.
-
Rigorous Quality Control Processes: A reliable provider should have comprehensive quality control measures, including pre-machining material inspection, in-process monitoring, and post-machining testing with precision tools. They should also be able to provide documentation (e.g., inspection reports, material certificates) for traceability.
-
Cleanroom Capabilities: For applications requiring contamination-free components (e.g., semiconductors, medical), ensure the provider has cleanroom facilities to prevent dust, debris, or other contaminants from affecting the machining process.
-
Design Support & DFM Services: The best providers offer design support to help optimize your component for CNC machining. This includes advising on material selection, feature design, and tolerance feasibility—saving time and reducing costs.
-
Turnaround Time & Scalability: Consider the provider’s ability to meet your project timeline, whether it’s a small prototype order or high-volume production. They should have the capacity to scale operations as your needs grow.
FAQs About CNC Machining Quartz Glass
Q: What tolerances can be achieved with CNC machining quartz glass?
A: CNC machining quartz glass can typically achieve tolerances of ±0.1 mm to ±0.005 mm, depending on the component’s size, geometry, and machining process. 5-axis CNC machines offer the highest precision for complex 3D shapes.
Q: Is CNC machining quartz glass more expensive than manual machining?
A: While the initial setup cost for CNC machining (programming, tooling) may be higher, it becomes more cost-effective for high-volume production due to reduced labor costs, lower material waste, and faster throughput. For low-volume prototypes, the cost difference is often negligible when considering the precision benefits.
Q: Can CNC machining handle all types of quartz glass?
A: Yes, CNC machining is compatible with most types of quartz glass, including fused silica (synthetic quartz), natural quartz, and quartz glass ceramics. The machining parameters (speed, feed, tooling) are adjusted based on the specific type of quartz glass and its properties.
Q: How long does CNC machining quartz glass take?
A: The timeline depends on the component’s complexity, size, and order quantity. A simple prototype can be machined in a few hours, while high-volume production of complex components may take several days. The programming phase typically adds 1–2 days for new designs.
Conclusion: The Value of CNC Machining Quartz Glass
CNC machining quartz glass is a critical enabler for high-precision industries, combining unmatched accuracy, consistency, and versatility to fabricate components that leverage quartz glass’s unique properties. Whether for semiconductors, optics, medical devices, or aerospace applications, CNC machining ensures that quartz glass components meet the strictest performance standards.
By understanding the process, key considerations, and how to select the right service provider, you can harness the full potential of CNC machining quartz glass for your projects. With the right partner, you’ll get high-quality, precise components that drive innovation and reliability in your products.
